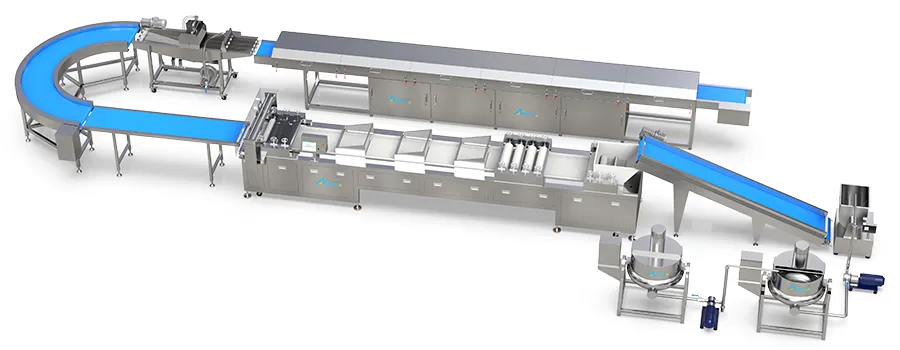

Cereal Bar Processing Line
Our cereal bar processing line is designed for the continuous production of nutritious snacks. By precisely mixing diverse ingredients like puffed cereals, nuts, granola, multi-grains, and binding syrups, the cereal bar making machine utilizes advanced roller forming and precision linear cutting methods to ensure uniform size, texture, and shape for every snack bar.
| Model | Power | Capacity | Dimensions |
| YYB-900 | 9.4kW | 10-13kg/h | 1450×1360×1600mm |

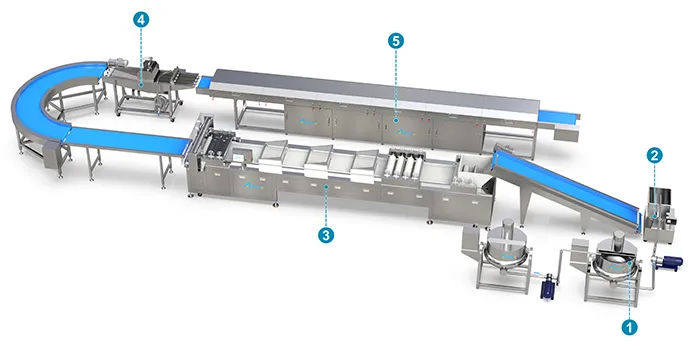

- 1. Syrup Preparation
- 2. Mixing
- 3. Forming
- 4. Chocolate Enrobing
- 5. Tunnel Freezing
Forming

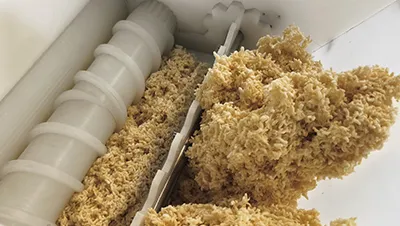

Mixing of different ingredients such as puffed cereals, rings, nuts, granola, multi-grains, and food-grade bonding syrup. The mixture is fed into automated roller forming and linear cutting machine for healthy snacks bar production.
Chocolate Enrobing
Chocolate enrobing machine is used for coating an even layer of chocolate on cereal bar, rice cakes, and bar snacks.
Tunnel Freezing
This tunnel freezing system utilizes instant freezing power generated from freezer unit to rapidly set the bars. The system features a food grade PU conveyor belt and can be customized in length and size based on your required capacity and temperature.
- Able to process a wide range of raw ingredients
- Flexible mold size for bar sizes and shapes (e.g. rectangular shape)
- Seamlessly extends to include chocolate enrobing and seasoning
- Fully automatic or manually operation
