Extruded Panko Breadcrumb Processing Line
  • Extruded Panko Breadcrumb Processing Line
  • Extruded Panko Breadcrumb Processing Line
  • Extruded Panko Breadcrumb Processing Line
Contact Us

This panko breadcrumbs production line uses innovative twin-screw extrusion technology from Europe, which can cook raw ingredients efficiently and form quickly. The system features a modular screw design and a multi-stage barrel, enabling flexible adjustments of process parameters such as formulation, temperature, and pressure to precisely control extrusion behaviour and produce breadcrumb products with different textures and flavours, including needle and flake formats.

The breadcrumb processing line is designed for completely automated, continuous operation, drastically decreasing production cycles while reducing footprint, labour needs and overall production costs. It is a highly efficient solution for industrial breadcrumb manufacturing.

Specifications
Model Power Capacity Dimensions (L×W×H)
AYE65 37-75kW 150-500kg/h 36000×1200×2200mm
AYE78 55-90kW 300-800kg/h 39000×1500×2200mm
AYE98 110-160kW 800-1200kg/h 41000×3300×4100mm

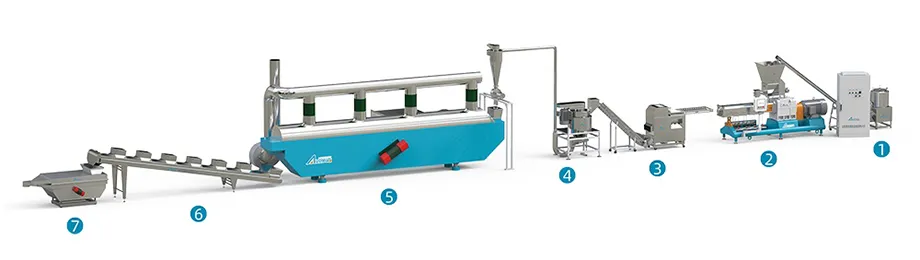

Production Process
Production Process
  • 1. Mixing
  • 2. Extruding
  • 3. Pulling Cutting
  • 4. Crushing
  • 5. Drying
  • 6. Cooling
  • 7. Screening
Mixing

Mixing
The mixing machine can mix different powdered raw materials uniformly and without dead corners, which can ensure the stability of the machine and guarantee the standardized production process of food.

Extruding

Extruding
Twin-screw extrusion is accomplished with a set of revolving screws that move and compress the raw materials at high temperature and pressure, allowing for efficient shearing, mixing, and thermal cooking. The processed mass is subsequently accurately formed using a die mechanism, providing articles of uniform shape and definite dimensions.

Pulling Cutting

Pulling Cutting
The cutting machine is employed for the initial cutting of needle-like breadcrumbs prior to grinding. The system offers adjustable speed control and high-capacity performance, which guarantees effective and consistent size reduction prior to grinding.

Crushing

Crushing
The breadcrumb grinding machine is horizontal, so the vibration is small and there is no dead zone. The grinding blades are symmetrically and evenly distributed, so the effective grinding surface area is big and the materials can be processed efficiently. The machine has a vertical stainless steel housing structure for durability and hygienic compliance. High-strength screening meshes are employed, and the particle sizes and product specifications may be changed easily by simply changing the screens with different apertures and shapes, allowing flexible production adjustment.

Drying

Drying
Uniformly fluidized drying provides efficient and uniform moisture removal, suitable for fragile and irregularly shaped granular materials. The system provides great mechanical and thermal efficiency, functioning in a fully enclosed structure for clean, hygienic, and energy-efficient processing.

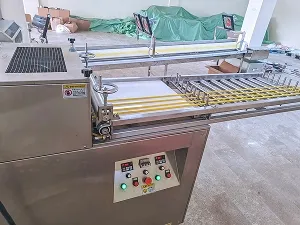

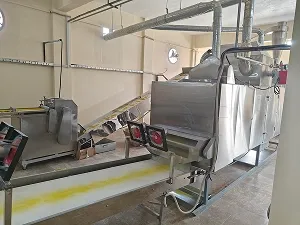

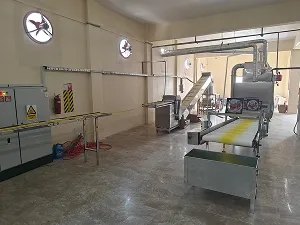

Installation at Customer Sites
Installation at Customer Sites
Installation at Customer Sites
Installation at Customer Sites
Installation at Customer Sites
As a trusted food equipment manufacturer, Shandong Arrow specializes in the design and manufacture of food extrusion machines and complete processing lines for breakfast cereals, puffed snacks, plant based protein, pet kibbles, pet treats and other extruded food products. Backed by over 30 years of deep industry expertise, we integrate advanced food extrusion technology with supporting industrial food processing machines for mixing, drying, milling, seasoning, coating, frying and cooling. We deliver custom-engineered food production lines that are CE and TUV compliant to maximize production output for food processors, pet food manufacturers, R&D institutes, and industrial distributors worldwide.
