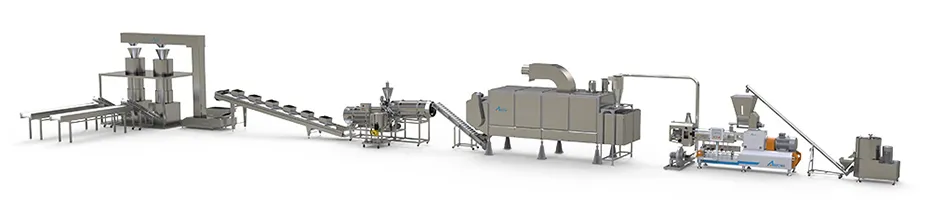

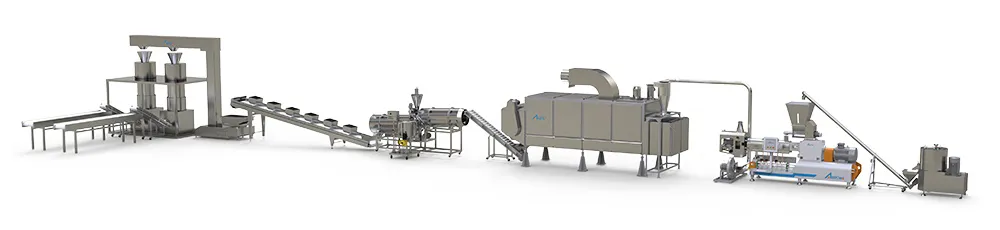

Dry Pet Food Production Line (100-800kg/h)
This dry pet food production line features a compact, flat-layout design that simplifies operation and reduces investment, making it well-suited for small to medium-scale production and new product development. The food-grade extrusion system supports flexible formulation adjustments, including fresh meat incorporation, ensuring adaptability to diverse product requirements.
Paired with a low-energy drying system and multiple heating options, the pet food production line delivers efficient processing and consistent product quality. By simply changing dies, it can produce a variety of shapes with high cooking levels and improved digestibility, ideal for manufacturing premium pet dry food.
Applications: Suitable for producing a wide range of pet foods, including dog food and cat food.
Capacity Range: 100-250 kg/h, 500-800 kg/h, providing flexible options to match different production scales and operational needs.
| Model | Capacity | Power (for reference) |
| 100-250 kg/h | 18.5 kW | |
| 500-800 kg/h | 37 kW |

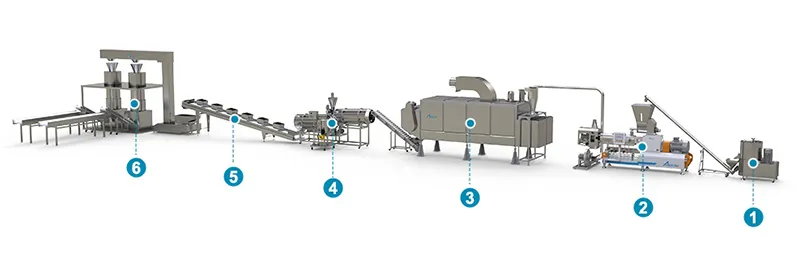

- 1. Mixing
- 2. Extruding
- 3. Drying
- 4. Coating
- 5. Cooling
- 6. Packing
Mixing
Vertical and horizontal mixing machines are intended to blend diverse powdered materials in feed production while maintaining uniform distribution of components. This sets a solid foundation for consistent compound feed quality and robust output performance.
Coating
This coating system includes a rotating drum, spray tank, metering device, and rotor pump to ensure even mixing and exact application. It improves flavour distribution and overall product quality, allowing for consistent and high-standard production results.
Cooling
This equipment combines conveying and cooling functions, using forced air cooling to provide a homogeneous temperature drop in the product. It maintains steady product conditions and effectively prepares the material for later packaging.
Extruding
This twin-screw extruder is intended for small to medium-scale manufacturing, is built to food-grade equipment standards, and has excellent formulation versatility. It has various liquid injection sites that allow for the flexible addition of oils, flavourings, and other ingredients to assist the creation of a variety of pet food products.
Each barrel segment has its own temperature control, ensuring precise process management and constant product quality. It also features an HMI interface for easy operation.
Drying
The servo-driven material distribution system assures even distribution and reliable operation. An integrated residue cleaning system makes maintenance easier while decreasing sanitary issues and safety hazards. The drying machine supports a variety of heating options, including steam, gas, and electric, allowing for easy adaption to changing production circumstances and energy requirements.
