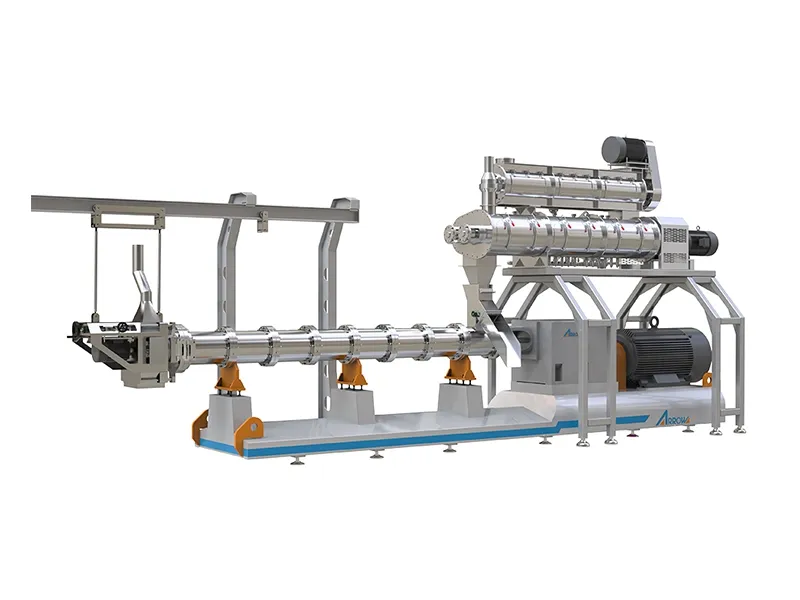

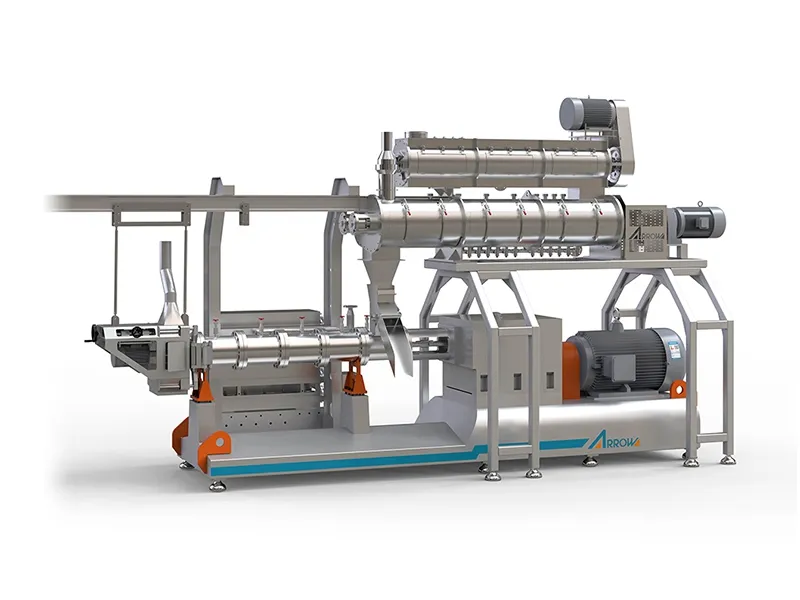

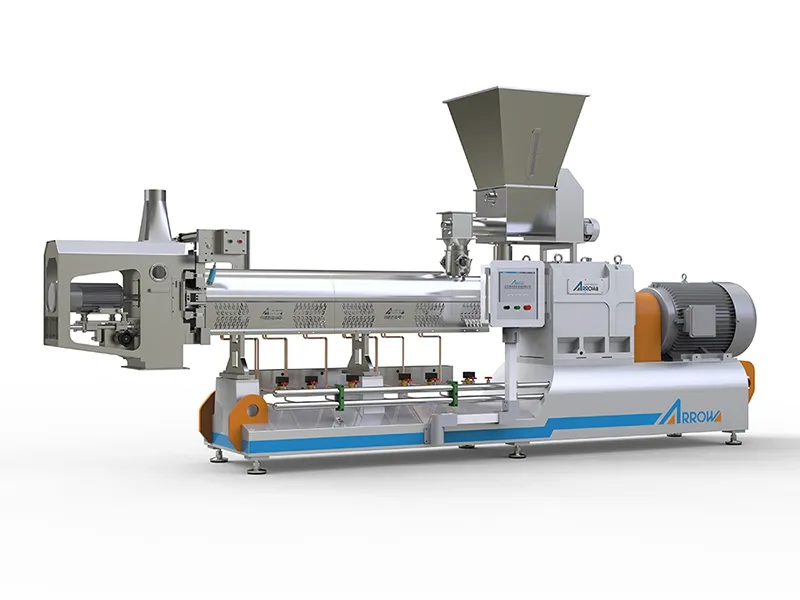

AYT Series Twin Screw Extruder
The AYT series twin-screw extruder is designed for industrial scale production of pet food. It can support single, double, or triple shaft conditioning systems, which improve material conditioning and cooking efficiency.
The extrusion system has a high length-to-diameter ratio, resulting in thorough cooking, uniformed expansion, and enhanced product texture. Its versatile multi-purpose structure allows for smooth adaptability to various product kinds and formulations, facilitating both product development and large-scale production.
| Model | Capacity | Power |
| 100-250kg/h | 18.5kW | |
| 500-800kg/h | 37kW | |
| 1000-1500kg/h | 75kW | |
| 2000-2500kg/h | 110/132kW | |
| 2500-3500kg/h | 132/160kW | |
| 4000-5500kg/h | 250kW | |
| 5500-7500kg/h | 280kW | |
| 8000-11000kg/h | 355kW |
Applications
Designed for cat and dog pet food production, this system operates at a core processing stage. It is ideal for fresh meat and high protein formulations enhancing both the taste and textural durability of pet foods.

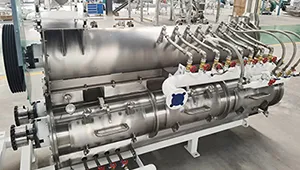

The twin-screw extruder uses a three-shaft paddle conditioner with numerous liquid and steam injection ports to ensure uniform and effective material conditioning. This improves mixing performance, encourages more fresh meat inclusion, and increases overall product maturity and quality.

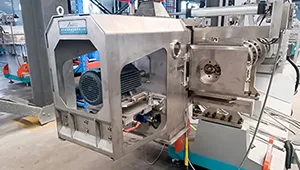

Featuring a side-push precision positioning rotary cutter, the snack extruder allows for blade change without downtime, considerably increasing production efficiency and eliminating interruptions.
The control system has a user-friendly HMI interface that allows for comprehensive data display and memory storage, as well as easy parameter adjustment via touchscreen.
