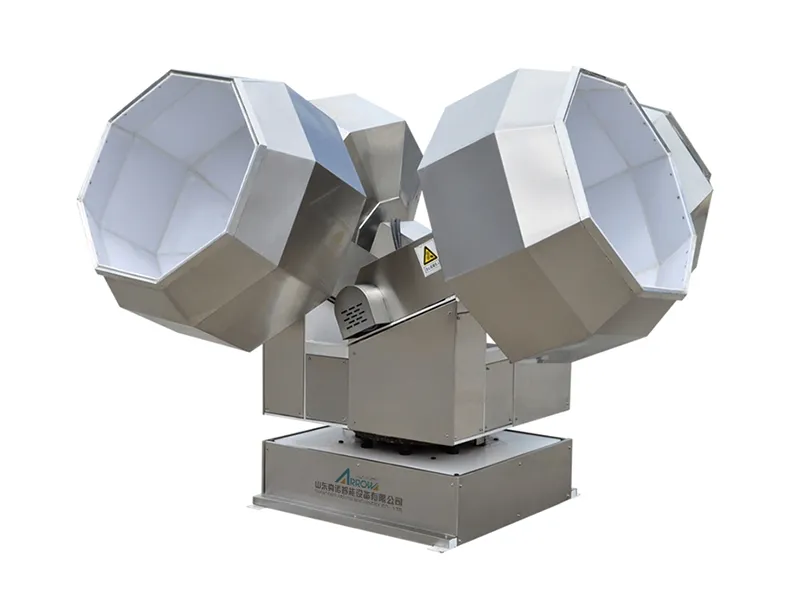

Multi-Head Seasoning Machine, Coating Pan
The multi-head seasoning machine is intended for effective batch seasoning, powder coating, and material combining in food production. Its food-grade stainless steel octagonal drum minimizes the inconsistent mixing issues common in traditional round drums, resulting in quick and uniform blending of ingredients and seasonings.
With high automation and consistent performance, this flavoring machine is perfect for puffed snacks, cereals, and a variety of other food applications. The seasoning system includes configurable variable frequency speed control and flexible customization to fulfill a variety of food production requirements.
Specifications
| Equipment | Power | Dimensions | Features |
| Feed elevator | 0.75kW | 4500×500×2500mm | Uniform material lifting ensures smooth conveying, easy cleaning, and reduced labor requirements. |
| Electronic Weighing System | 0.05kW | 700×890×2150mm | An automatic weighing system provides accurate dosing and improved efficiency while reducing manual operation. |
| Double Drum Mixer | 3.4kW | 2500×2500×1800mm | The mixing system delivers consistent blending performance with large capacity, minimizing labor input. |
| Weighing & Flavorings/Sugar Applying System | 0.75kW | 800×600×2100mm | Automatic weighing and applying of spices ensures even powder distribution, while adjustable atomization during sugar spraying guarantees precise coating; the system is hygienic and labor-saving. |
| Insulated Mixing Tank (with agitation) | 9.5kW | 710×710×1420mm | A heating and insulation function with integrated agitator prevents slurry sedimentation and maintains process stability. |
| Discharge Conveyor | 0.55kW | 710×710×1420mm | Uniform material lifting design ensures efficient conveying, easy cleaning, and reduced labor requirements. |
Features
- An integrated multi-point rotating octagonal drum design with imported oil spray nozzles ensures uniform and precise oil spraying.
- The full stainless steel construction provides excellent corrosion resistance and durability.
- The multi-head design ensures more uniform mixing of food products, flavorings, and oil for consistent coating performance.

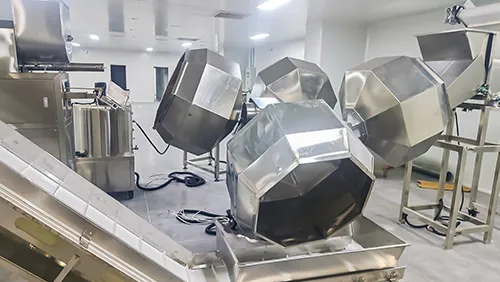

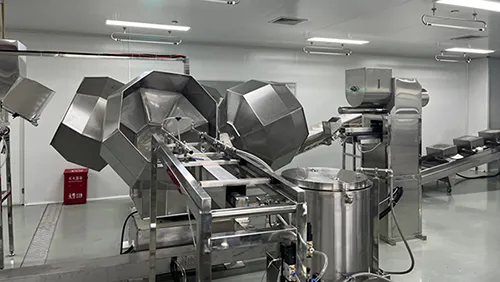

Installation at Customer Sites
As a trusted food equipment manufacturer, Shandong Arrow specializes in the design and manufacture of food extrusion machines and complete processing lines for breakfast cereals, puffed snacks, plant based protein, pet kibbles, pet treats and other extruded food products. Backed by over 30 years of deep industry expertise, we integrate advanced food extrusion technology with supporting industrial food processing machines for mixing, drying, milling, seasoning, coating, frying and cooling. We deliver custom-engineered food production lines that are CE and TUV compliant to maximize production output for food processors, pet food manufacturers, R&D institutes, and industrial distributors worldwide.
