Foodstuff Grinding System

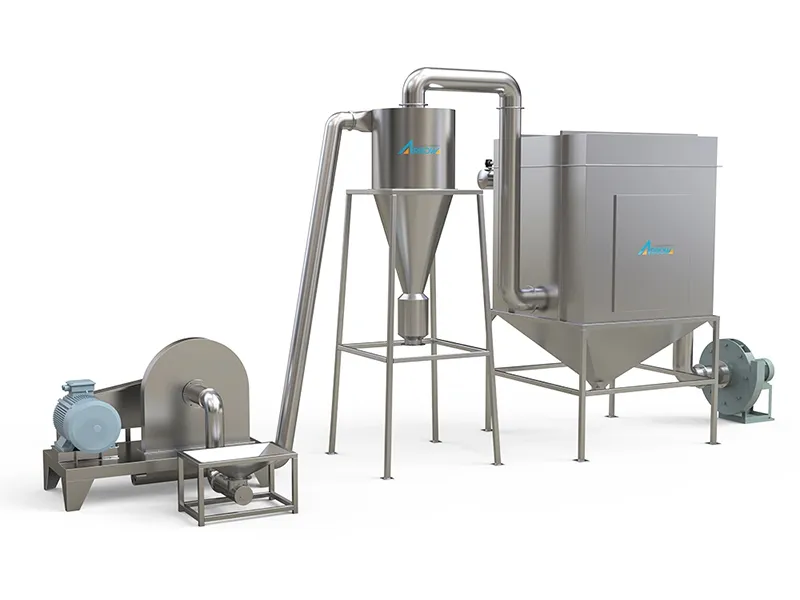

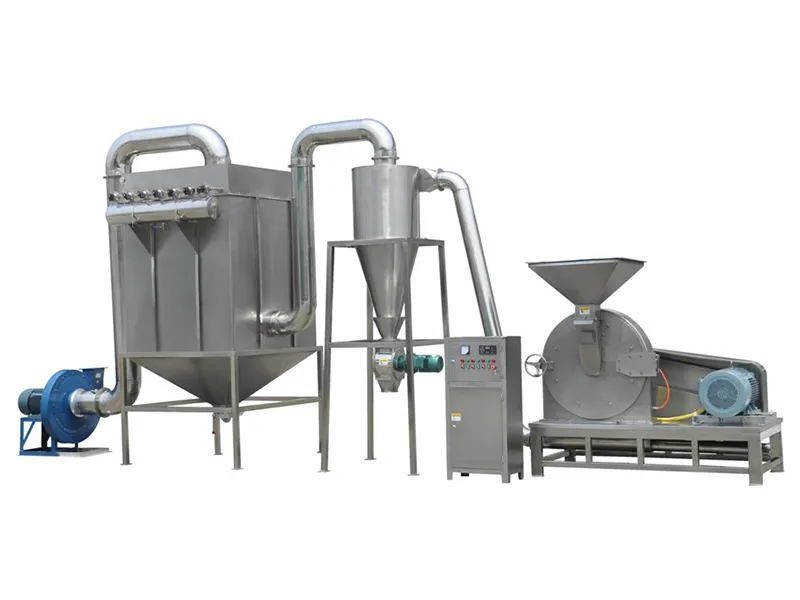

Product composition: includes a pulverizer, cyclone separator, dust collector, connecting pipes, suction fan, and control electrical cabinet.
Specifications
| Model | Main Motor Power | Capacity |
| 11kW | 100-500kg/h | |
| 22kW | 500-1500kg/h | |
| 37kW | 800-2000kg/h |
Features
Materials are ground efficiently through impact, friction, and particle-to-particle collision by taking use of the relative movement between the revolving and fixed teeth discs.
Dust is collected in a dust collection box and efficiently recovered using filter cartridges, while the fineness can be easily adjusted by changing the screen mesh.
