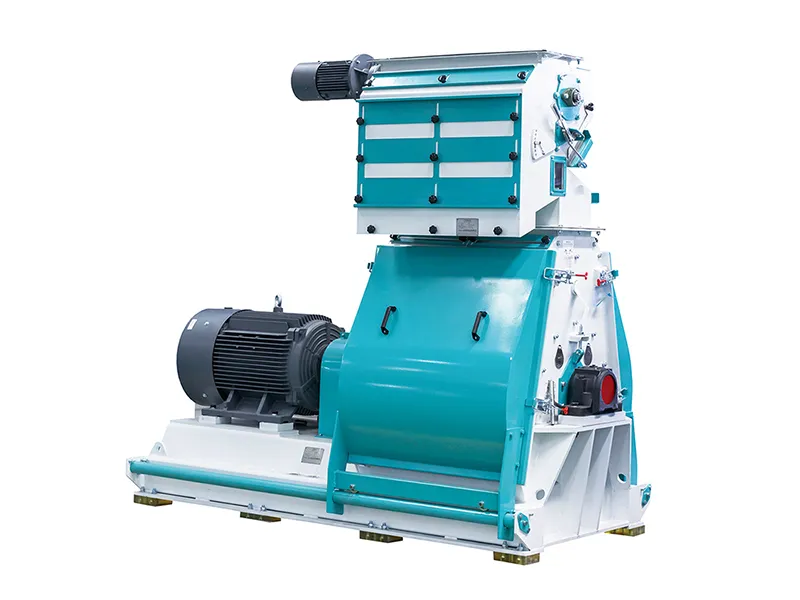

Hammer Mill

The hammer mill is used to process granular raw materials like aquatic feed and pet food. The final particle size usually ranges between 30 and 70 mesh, ensuring uniform and predicta1ble fineness for downstream processing.

Specifications

Model	Capacity	Power
SFWD65*40W	2-4t/h	45/55/75kW
SFWD65*60W	2.5-5t/h	45/55/75/90kW
SFWD65*80W	8-10t/h	45/55/75/90/110kW
SFWD65*100W	7-13t/h	110/132/160/200kW
SFWD65*125W	9-20t/h	132/160/200kW
SFWD65*150W	13-20t/h	200/220/250/280/315kW

Features

The alloy steel fixed blades provide great efficiency, consistent durability, and a wide application range. They also allow for adjustable hammer clearance for optimal performance. Its water-drop form effectively reduces rotational airflow, improves grinding efficiency, and dramatically boosts production output.

With adjustable hammer-screen gap adjustment, the grinding machine efficiently handles various materials for excellent grinding performance. A high-precision, dynamically balanced rotor ensures smooth and stable performance.

As a trusted food equipment manufacturer, Shandong Arrow specializes in the design and manufacture of food extrusion machines and complete processing lines for breakfast cereals, puffed snacks, plant based protein, pet kibbles, pet treats and other extruded food products. Backed by over 30 years of deep industry expertise, we integrate advanced food extrusion technology with supporting industrial food processing machines for mixing, drying, milling, seasoning, coating, frying and cooling. We deliver custom-engineered food production lines that are CE and TUV compliant to maximize production output for food processors, pet food manufacturers, R&D institutes, and industrial distributors worldwide.
