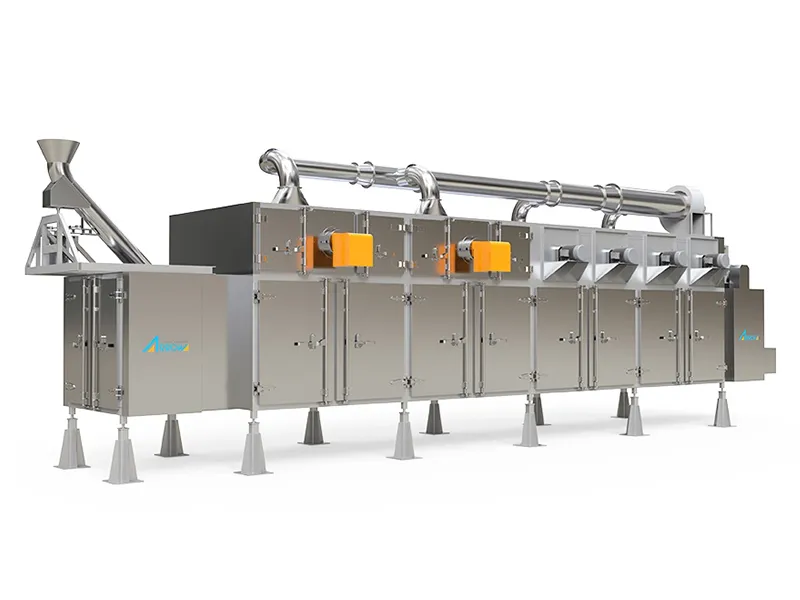

Continuous Belt Dryer
This industrial dryer is a high efficiency continuous belt dryer system utilizing a dual-direction cross-flow hot air circulation process to optimize the maturation and dehydration of puffed food products.
The continuous belt dryer features an internal heat circulation system that minimizes energy consumption and efficiently reduces production costs. It is available in flexible heating methods, including steam heating, gas heating and electric heating options, to meet your specific production requirements.
| Model | Capacity | Heating Method | Dimensions | Drying Time | Power |
| 0.5-0.8t/h | Gas Heating | 6700×2000×3800mm | 10-60min | 16.95kW | |
| 0.5-0.8t/h | Steam Heating | 6700×2000×3800mm | 10-60min | 16.95kW | |
| 0.5-0.8t/h | Electric Heating | 6700×2000×3800mm | 10-60min | 226.95kW | |
| 1-1.5t/h | Gas Heating | 8700×2000×3800mm | 10-60min | 23.75kW | |
| 1-1.5t/h | Steam Heating | 8700×2000×3800mm | 10-60min | 23.75kW | |
| 1-1.5t/h | Electric Heating | 8700×2000×3800mm | 10-60min | 338.75kW | |
| 2-2.5t/h | Gas Heating | 10700×2000×3800mm | 10-60min | 33.75kW | |
| 2-2.5t/h | Steam Heating | 10700×2000×3800mm | 10-60min | 33.75kW | |
| 2-2.5t/h | Electric Heating | 10700×2000×3800mm | 10-60min | 453.75kW |
Applications
This continuous belt dryer is specifically used for the drying of granular, flaky, and strip-shaped materials in the feed and food processing industries.
An air distribution structure ensures uniform heat coverage. Parameters such as airflow volume, temperature, material retention time, and feed rate are fully adjustable, effectively preventing overdrying or inconsistent drying results.
The number of drying sections can be configured according to production capacity requirements. Optional belt cleaning systems and material cooling units are available to adapt to various materials and complex production process.
A design of upper combustion chamber can prevent dust accumulation, thus significantly reducing fire risk and ensuring operation safety.
The continuous belt dryer is equipped with pressure-clamping seal doors for simple disassembly and easy cleaning. The high-temperature resistant silicone sealing structure provides superior airtight and extended service life.

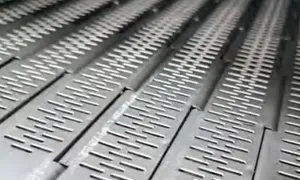

Chain plate apertures can be custom made to ensure optimal drying efficiency, such as oval-shaped design can be tailored to specific product size, allowing for optimal hot air penetration and circulation.
Oscillating spreader allows for even product distribution on the dryer belt, effectively preventing material accumulation at the dryer inlet.
